FJ40 rear 4-link suspension
Details:

Length of links: 35" uppers and lowers plus ~3" for heims

Final dimension on lower links, including sleeve: 1.5" OD, 5/8" ID, 7/16" wall
Final dimension on upper links: 1-1/4" OD, 5/8" ID, 5/16" wall

Verticle link separation at the axle: 8.5"
Verticle link separation at the frame: ~6"
Upper link separation at frame: ~28.5"
Lower link separation at frame: 31"
Lower link separation at axle: ~35.5"

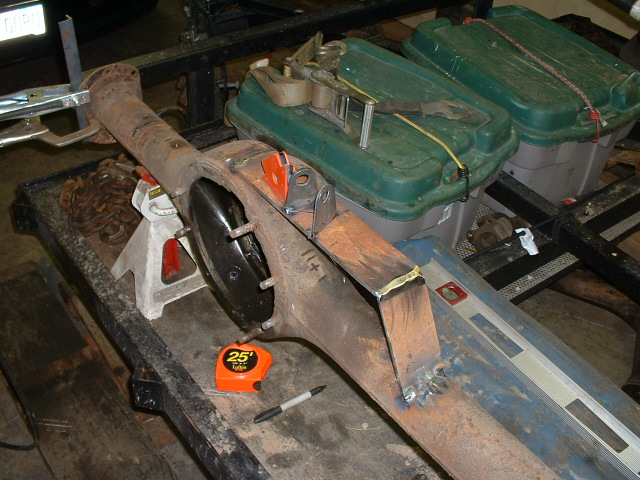

Photos of the process:

          Updated October 2nd:
